Standard Mold Component · 112 SKU Options

Small Pull Rods for Molds小拉杆

Three product types with fixed standard diameters and lengths. Select the specification, review its matching SKU drawing and add it to one complete RFQ.

Add to complete RFQ →Send a custom drawing

112Available specifications

3Product types

Ø13–Ø25Diameter range

JHD · SPR

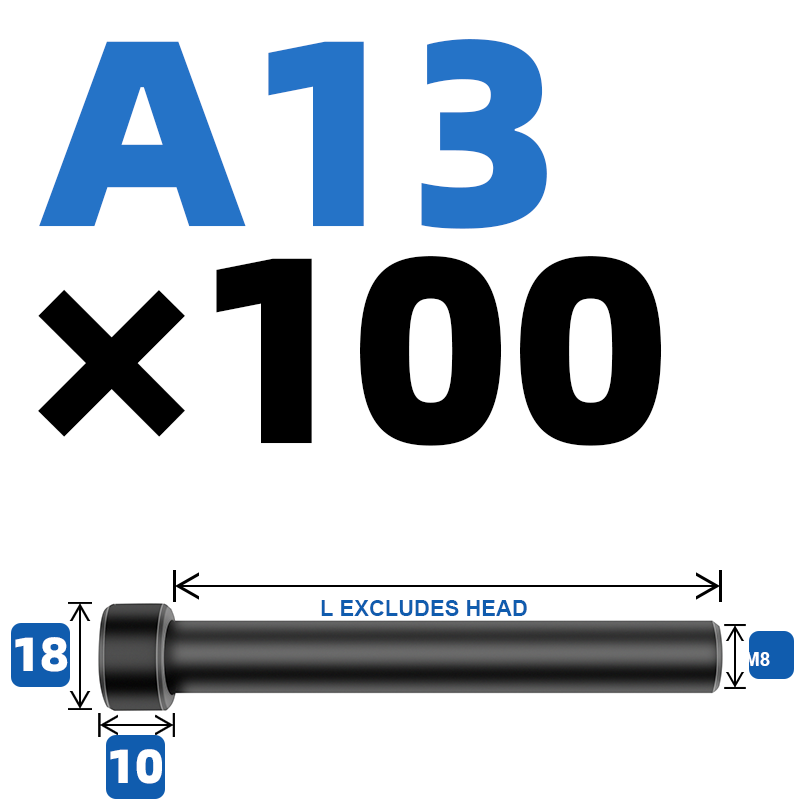

A-Type Pull Rod Ø13 × 100 mm M8 dimension drawing

A-Type · Ø13 × 100 mm · M8

Product Configurations

Three types. One clear selection flow.

A型拉杆

A-Type Pull Rod

Headed and threaded pull rods offered in standard working lengths.

Diameter: Ø13 · Ø16 · Ø20 · Ø25
Length: 90–300 mm
Thread: M8 · M10 · M12 · M16

70 options

C型拉杆

C-Type Pull Rod

Short working-length pull rods with a matched thread for each diameter.

Diameter: Ø13 · Ø16 · Ø20 · Ø25
Length: 14–51 mm
Thread: M8 · M10 · M12 · M16

23 options

拉杆套

Pull Rod Sleeve

Matching sleeves selected by outside diameter and standard sleeve length.

Diameter: Ø13 · Ø16 · Ø20
Length: 10–44 mm

19 options

Standard Specifications

Only confirmed sizes can be selected.

The options below are structured from the Taobao SKU list. Diameter and length are fixed selections to reduce ordering mistakes.

Material45# carbon steelHeat treatmentHigh-frequency hardenedSurfaceBlack oxideNon-standardMade to drawing or sample

TypeDiameter / ThreadAvailable lengths

A-Type Pull RodØ13 mm · M8100 · 110 · 120 · 130 · 140 · 150 · 160 · 170 · 180 · 190 · 200 mm

A-Type Pull RodØ16 mm · M1090 · 100 · 110 · 120 · 130 · 140 · 150 · 160 · 170 · 180 · 190 · 200 · 210 · 220 · 230 · 240 · 250 · 260 · 270 · 280 · 290 · 300 mm

A-Type Pull RodØ20 mm · M12100 · 110 · 120 · 130 · 140 · 150 · 160 · 170 · 180 · 190 · 200 · 210 · 220 · 230 · 240 · 250 · 260 · 270 · 280 · 290 · 300 mm

A-Type Pull RodØ25 mm · M16150 · 160 · 170 · 180 · 190 · 200 · 210 · 220 · 230 · 240 · 250 · 260 · 270 · 280 · 290 · 300 mm

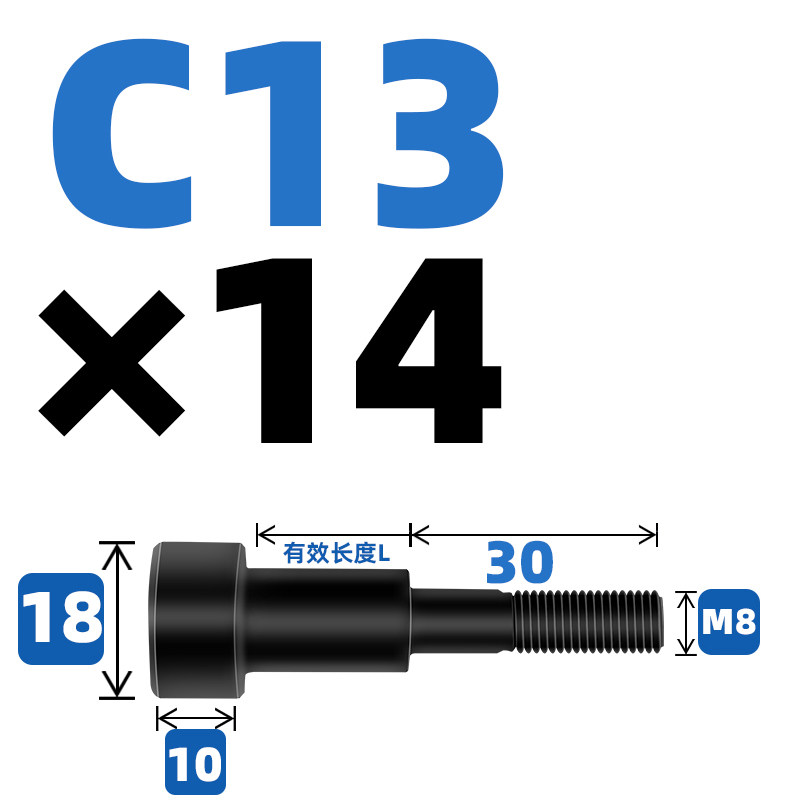

C-Type Pull RodØ13 mm · M814 · 19 · 24 · 30 · 35 · 40 mm

C-Type Pull RodØ16 mm · M1015 · 20 · 25 · 30 · 35 · 40 · 45 mm

C-Type Pull RodØ20 mm · M1220 · 25 · 30 · 35 · 40 · 45 · 50 mm

C-Type Pull RodØ25 mm · M1631 · 41 · 51 mm

Pull Rod SleeveØ13 mm10 · 14 · 19 · 24 · 29 · 34 · 39 mm

Pull Rod SleeveØ16 mm14 · 19 · 24 · 29 · 34 · 39 mm

Pull Rod SleeveØ20 mm19 · 24 · 29 · 34 · 39 · 44 mm

How to Order a Complete Set

One list. One controlled supply workflow.

01Send BOM & Drawings

Upload Excel/CSV, drawings and required quantities.

02Technical Review

Each line, material, tolerance and missing detail is checked.

03Consolidated Quote

Receive one quotation for standard and custom components.

04Production & QC

Parts are produced, inspected and tracked to the confirmed requirement.

05Labeled Shipment

Items are sorted, labeled, packed and shipped together.

Complete mold-component BOM

Add these pull rods to one complete mold-components quotation.

Upload an Excel/CSV BOM with the available drawings. JHD can quote pull rods together with your other standard and drawing-based mold components.

Send BOM & Drawings→Download BOM Template

Complete BOM Quotation

Upload one list for one complete quotation.

Send your Excel/CSV BOM, drawings and quantities. We review the full list, clarify missing details and quote the mold components together.
